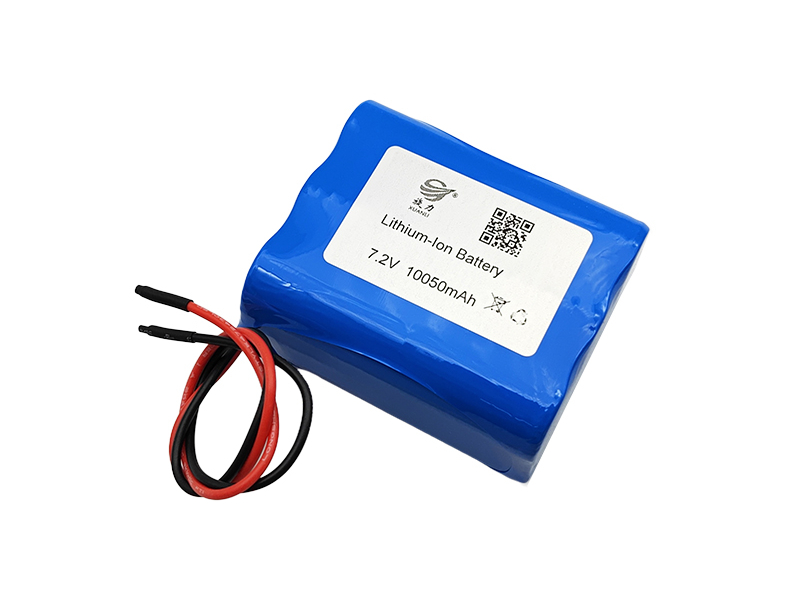

7.2V cylindrical lithium battery product model: XL 7.2V 10050mAh
Technical parameters of 7.2V cylindrical lithium battery (Specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 18650
· Single cell voltage: 3.6V
· The nominal voltage of the battery pack after assembly: 7.2V
· Single battery capacity: 3.35Ah
· Battery combination method: 2 series and 3 parallel
· The voltage range of the combined battery is 5.0~8.4V
· Battery capacity after combination: 10.05Ah
· Battery pack power: 72.36Wh
· Battery pack size: 38*58*68mm
· Maximum discharge current: <10.05A
· Instantaneous discharge current: 20~30A
· Maximum charging current: 0.2~0.5C
· Charge and discharge cycles: > 500 times
· Main chips: (Seiko, TI)
7.2V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
